MQTT Tiles built with Vue.js

by Vue.js Examples

MQTTTiles with Vue.js

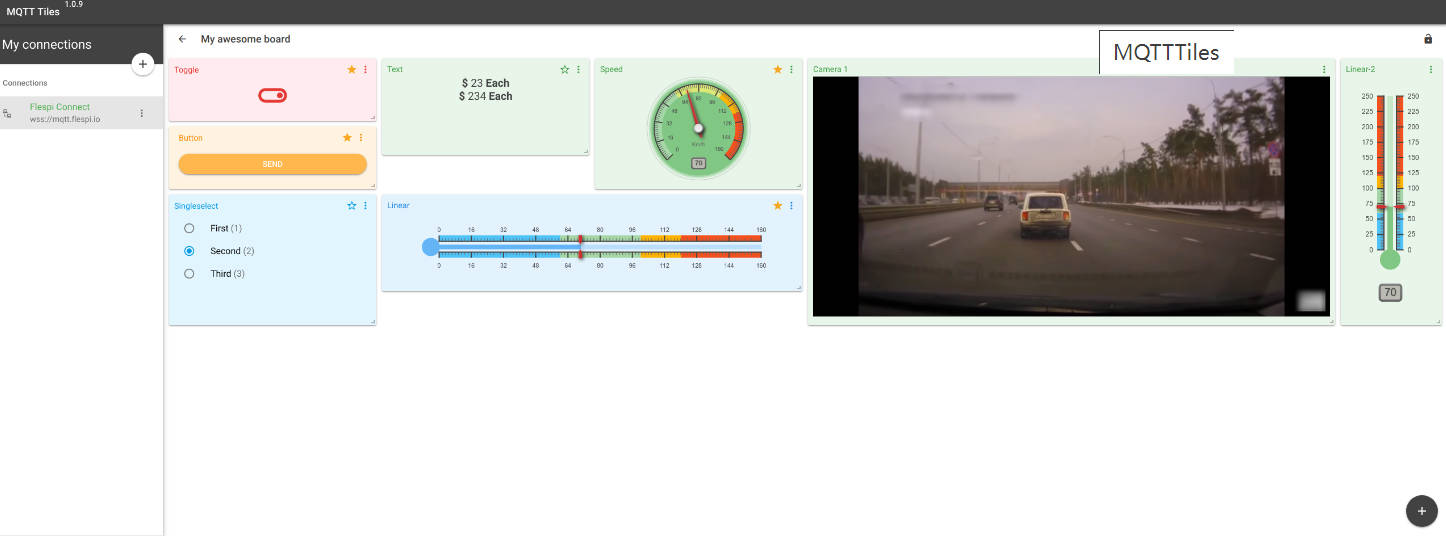

Dashboard based on MQTT. Supports MQTT 5.0 and 3.1.X protocols, connections to multiple brokers, multiple subscribe widgets. Saves configuration in browser’s local cache or in retain message on broker.

Live version available here: MQTTTiles.

Features

  • ES6 Javascript
  • Vue.js (Quasar)
  • Writing .vue files
  • Vuex
  • Webpack
  • Responsive layout
  • NPM ecosystems
  • Material theme
  • Dev Hot Reload
  • and many more!

Prerequisites:

Build Setup

# clone the repo
$ git clone https://github.com/flespi-software/mqtttiles.git mqtttiles

# go into app's directory and install dependencies
$ cd mqtttiles
$ npm install

# serve with hot reload at localhost:8080
$ quasar dev

# build for production with minification for flespi.io
$ quasar build

Use like component

You must have a Quasar-based app.

# install like repo
$ npm install git+https://git.gurtam.net/flespi/frontend/MQTTTiles.git

in quasar.conf.js

framework: {
  components: [
    'QIcon',
    'QToolbar',
    'QToolbarTitle',
    'QModal',
    'QModalLayout',
    'QList',
    'QListHeader',
    'QItem',
    'QItemMain',
    'QItemSide',
    'QItemTile',
    'QItemSeparator',
    'QBtn',
    'QInput',
    'QSelect',
    'QCheckbox',
    'QTooltip',
    'QPopover',
    'QCard',
    'QCardTitle',
    'QCardMain',
    'QCardSeparator',
    'QCardActions',
    'QCardMedia',
    'QToggle',
    'QChip',
    'QBtnToggle',
    'QChipsInput',
    'QField',
    'QResizeObservable',
    'QCollapsible',
    'QRadio',
    'QDialog',
    'QProgress',
    'QKnob',
    'QSlider',
    'QColorPicker',
    'QBtnDropdown',
    'QPagination'
  ],
  directives: [
    'Ripple',
    'CloseOverlay'
  ],
  plugins: [
    'Notify',
    'LocalStorage',
    'SessionStorage',
    'Dialog',
    'Loading'
  ]
}

import Dash from 'mqtttiles'

export default {
  components: { Dash }
}

<dash
  :clientSettings="clientSettings"
  @change:status="changeStatusHandler"
  @share="shareHandler"
  @change:title="t => title = t"
  @update:boards="saveBoardsToLocalStorage"
/>

Props:

Name Description Default
clientSettings Connection client settings undefined
initBoards Your saved boards undefined

clientSettings structure:

let clientSettings = {
  clientName: 'New client',
  clientId: `mqtt-tiles-${Math.random().toString(16).substr(2, 8)}`,
  host: 'wss://mqtt.flespi.io',
  keepalive: 60,
  protocolVersion: 5,
  clean: true,
  username: 'FlespiToken XXXXXXXXXXXXXXXXXXX',
  password: '',
  properties: {
    sessionExpiryInterval: undefined
  },
  syncToRetain: false,
  syncNamespace: 'xflespifront/mqtttiles/boards'
}

Events:

Name Description Payload
change:status connect client status changes status:
share share board <Share_model>
change:title generated title {active-board-name} - MQTT Tiles:
update:boards updated boards configuration boards collection:

share model structure:

let shareModel = {
  boardId: "XXXXXXX-XXXXX-XXXX-XXXX-XXXXXXXXXX"
  token: "FlespiToken XXXXXXXXXXXXXXXXXXXXXXXXXXXX"
  topic: "topic/to/sync/data",
  share: [<Flespi_MQTT_ACL_instance>]
}

License

MIT license.
